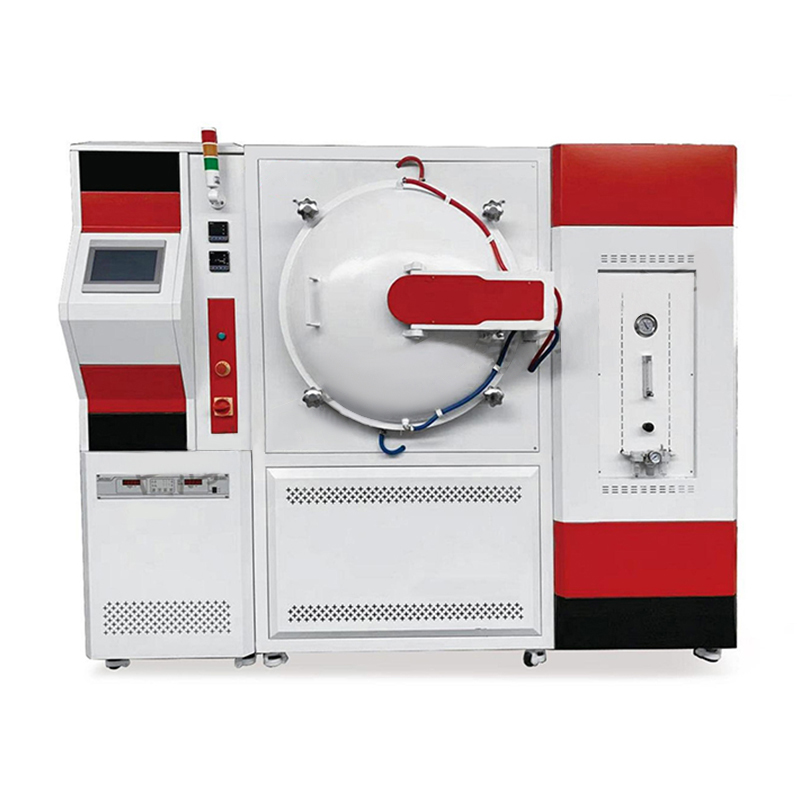

Vacuum Carbon Tube Furnace
This vacuum carbon tube furnace is a high temperature, high vacuum resistance furnace with a graphite heating element. The maximum temperature can reach 2000°C-2300°C. It is widely used in the preparation of inorganic materials (such as: ceramic seals, silicon carbide, zirconium oxide, aluminum dioxide, etc.) and metal materials (hard alloy) in vacuum or protective atmosphere, and can also be used for the purification of rare earth elements and their oxides and sapphire annealing.
Furnace size (mm) | Maximum temperature (°C) | Vacuum degree | Power(KW) | Voltage | Heating elements |
200*200*200 | 2300°C | 6.67*10-3PA | 40 | 380V | Graphite |
400*200*200 | 67 | ||||
400*350*300 | 105 | ||||
600*400*400 | 185 |


-
1、 Shaped ceramic fiber furnace lining for high alumina ceramic fiber board The shaped ceramic fiber furnace lining of high alumina ceramic fiber board mainly refers to the furnace lining composed of formed refractory materials such as fiber blankets, fiber felt, fiber boards or fiber components. Structurally, it can be divided into two categories: layered structure and composite structure. 1. Structure of Layered Refractory Fiber Lining Layered laying of refractory fiber furnace lining is...
