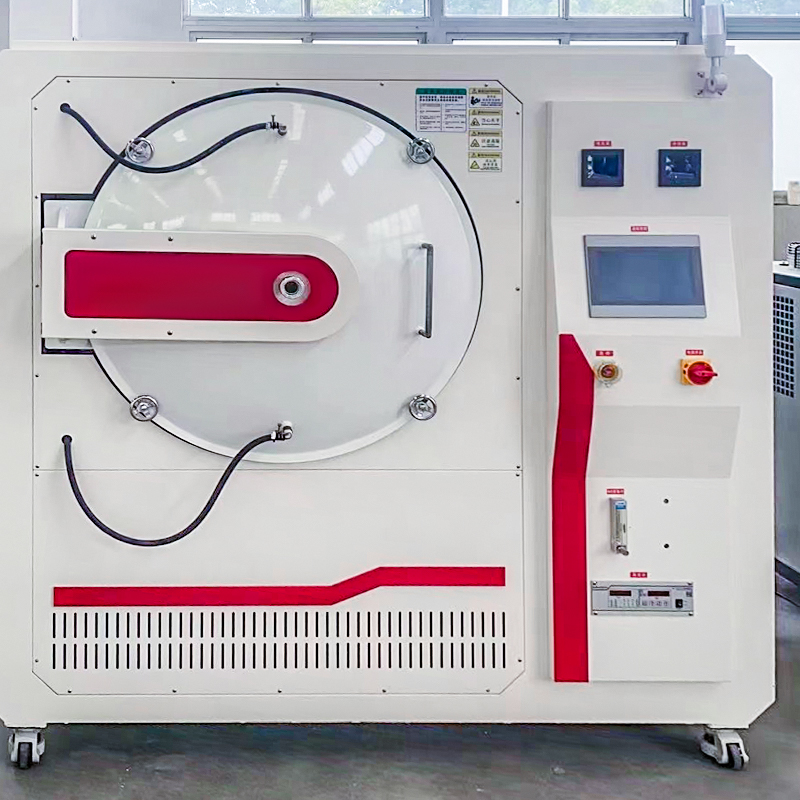

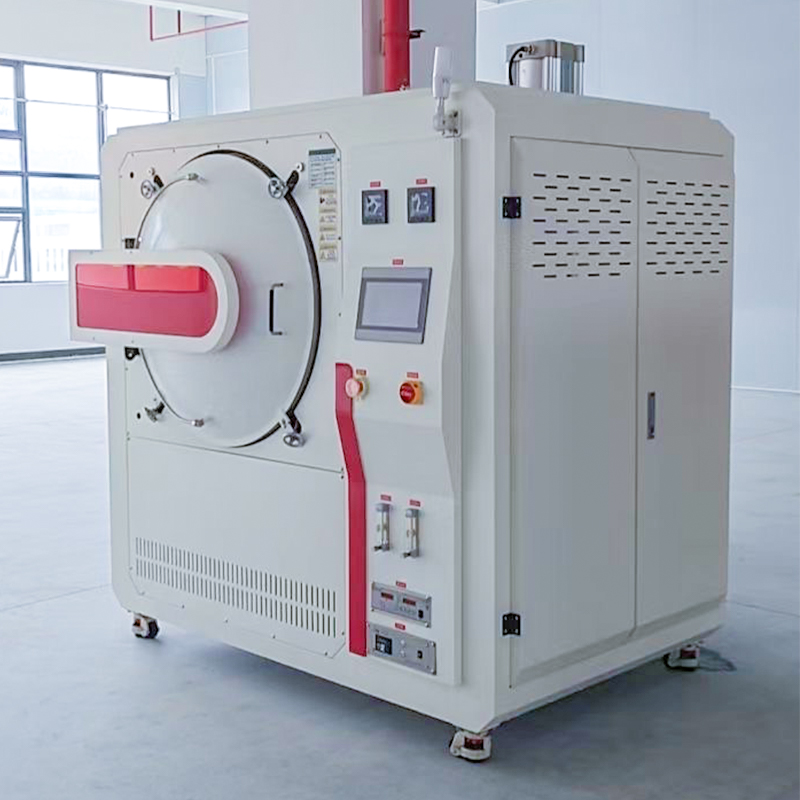

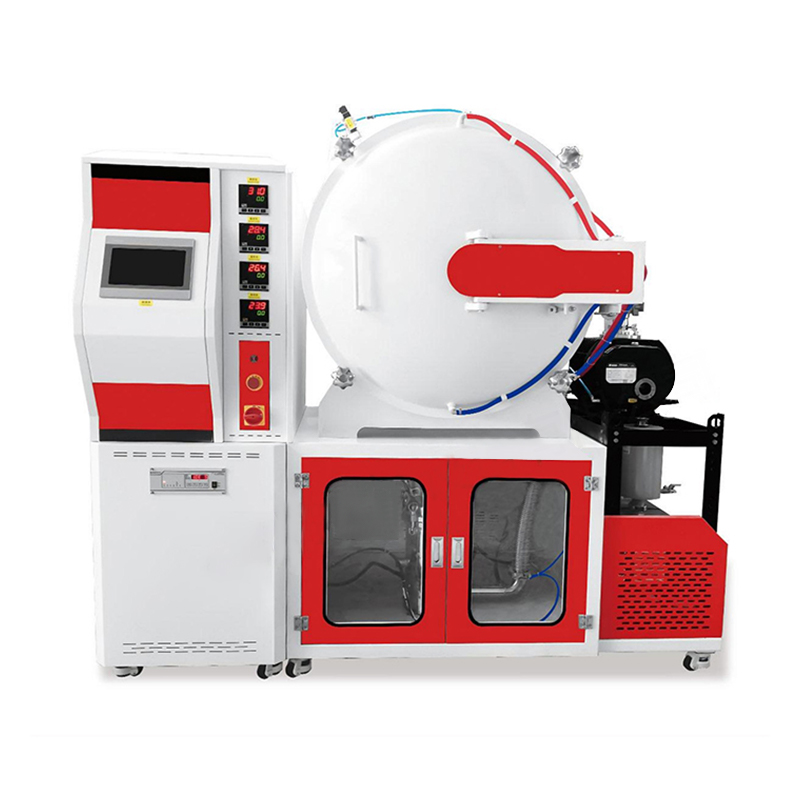

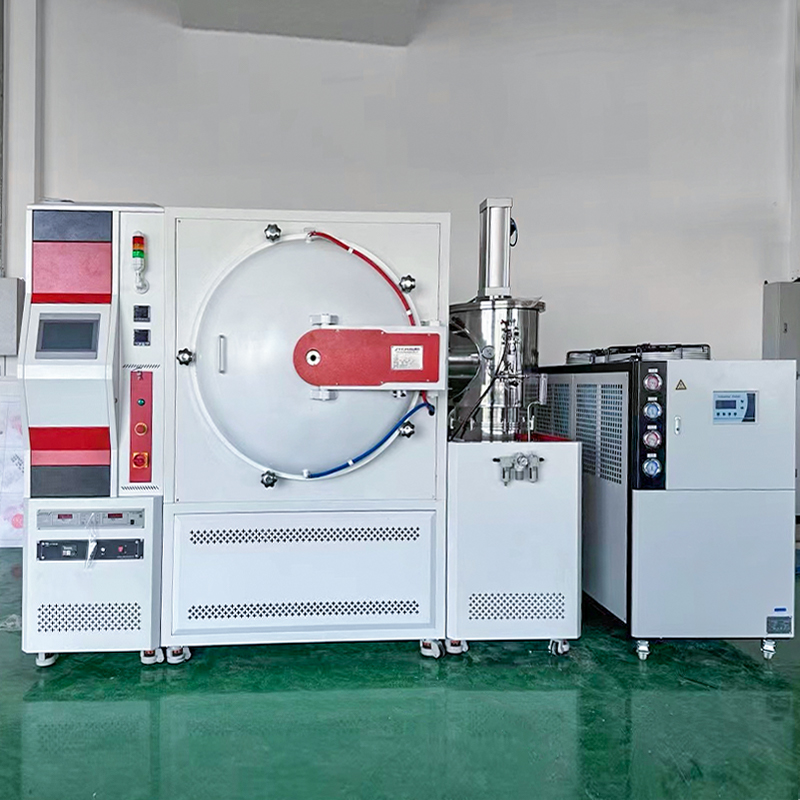

Low Temperature Vacuum Annealing Furnace
This equipment is a horizontal structure with a square structure in the middle of a circle, which can ensure high vacuum efficiency while also making the furnace resistant to deformation and durable. The finned metal tube is heated inside, and the heat is evenly distributed with a multi-layer heat insulation screen. The furnace uses a 304 stainless steel furnace and a carbon steel outer layer. The two layers are cooled with circulating water, which has a long service life. It is mainly used for ceramic firing, vacuum smelting, degassing of electric vacuum parts, annealing, brazing of metal parts, and ceramic-metal sealing.
Furnace size (mm) | Maximum temperature (°C) | Power(KW) | Voltage | Heating elements | Heating rate | Vacuum degree |
400*300*300 | 600°C | 9 | 380V | Spiked heating tube | 1-20°C/MIN | 10PA |
500*400*400 | 12 | |||||
600*500*500 | 18 | |||||
800*500*500 | 27 |


-
1、 Shaped ceramic fiber furnace lining for high alumina ceramic fiber board The shaped ceramic fiber furnace lining of high alumina ceramic fiber board mainly refers to the furnace lining composed of formed refractory materials such as fiber blankets, fiber felt, fiber boards or fiber components. Structurally, it can be divided into two categories: layered structure and composite structure. 1. Structure of Layered Refractory Fiber Lining Layered laying of refractory fiber furnace lining is...
