Ceramic Fiber Blankets

Introduction

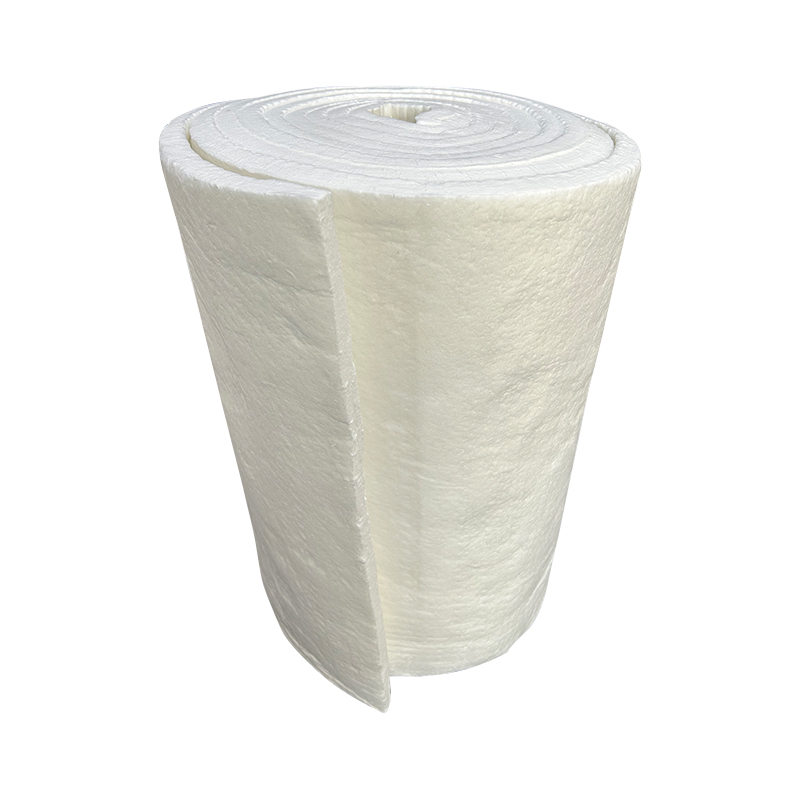

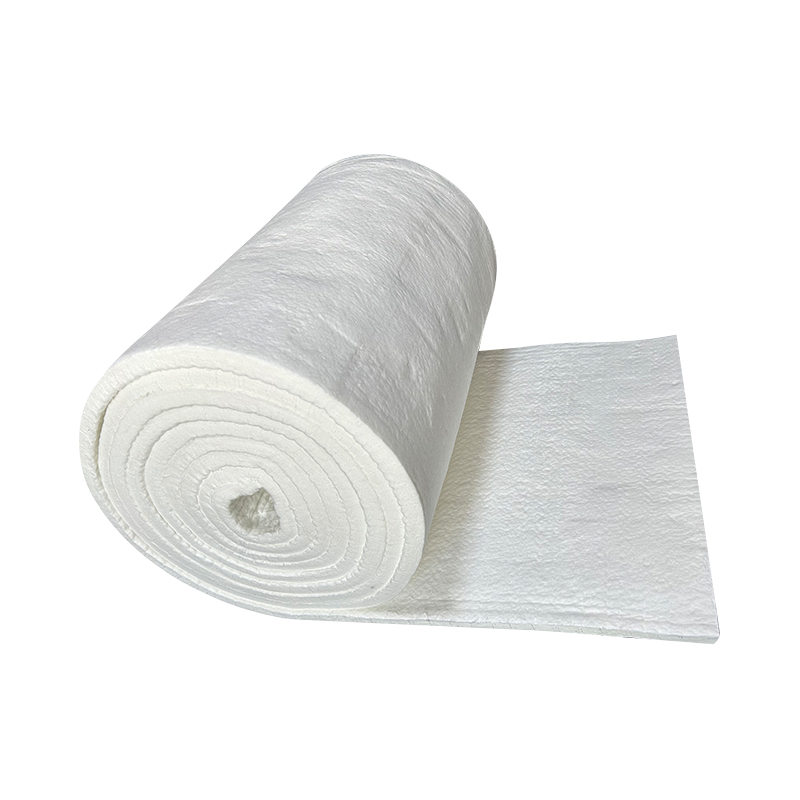

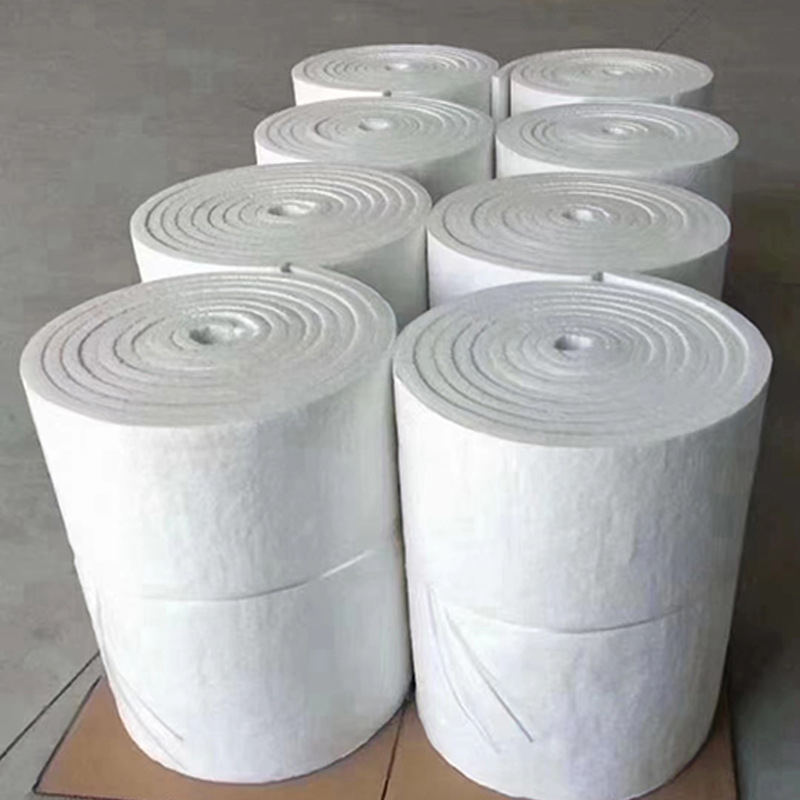

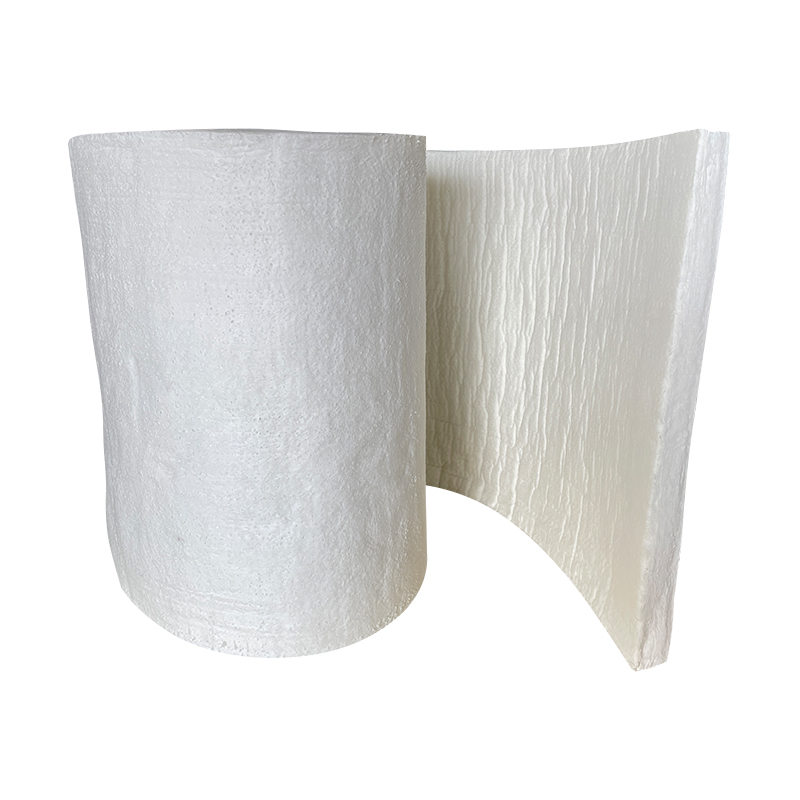

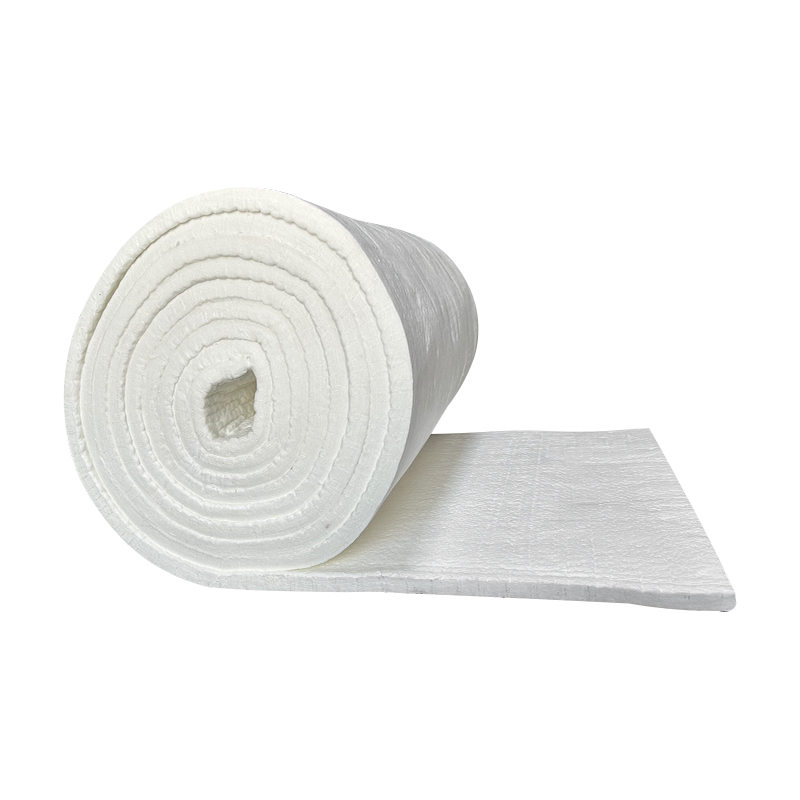

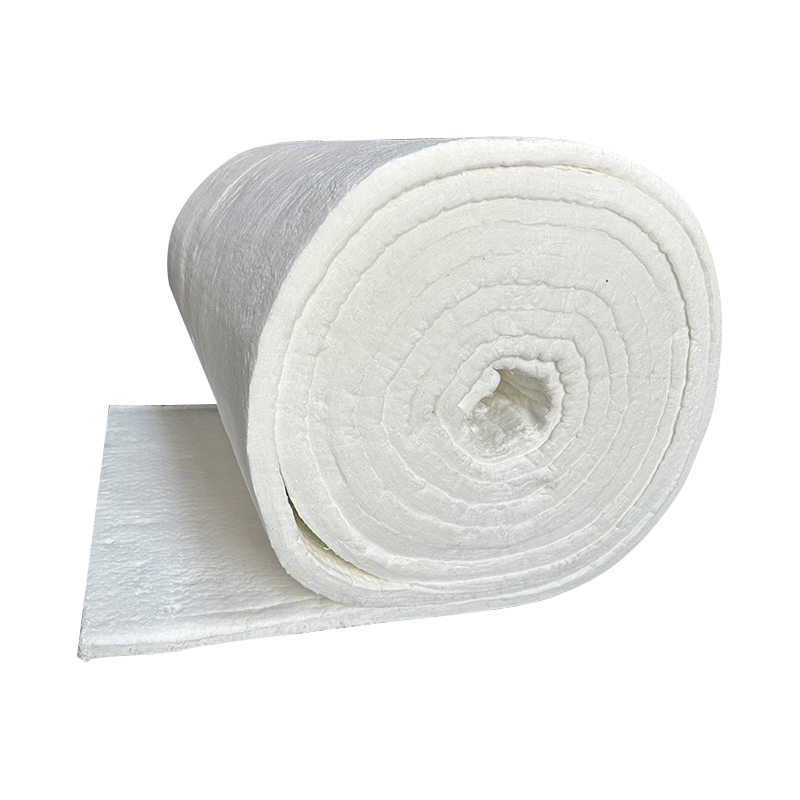

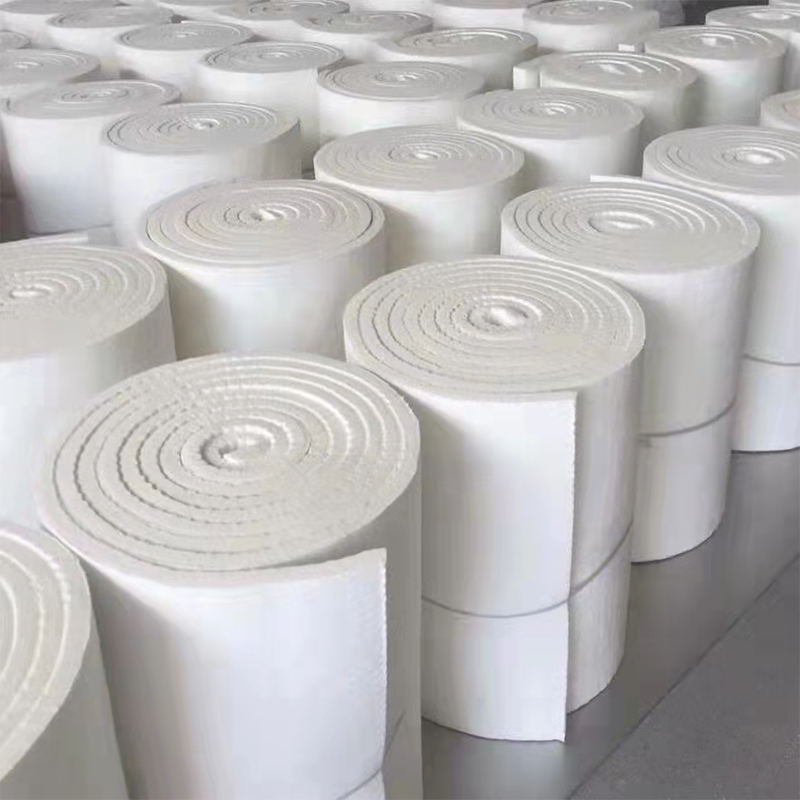

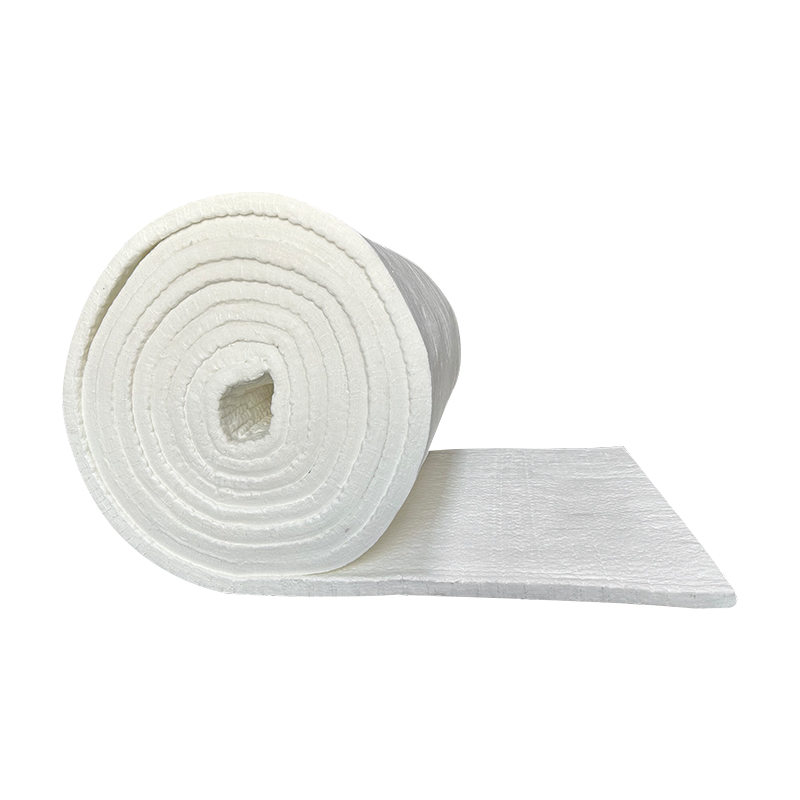

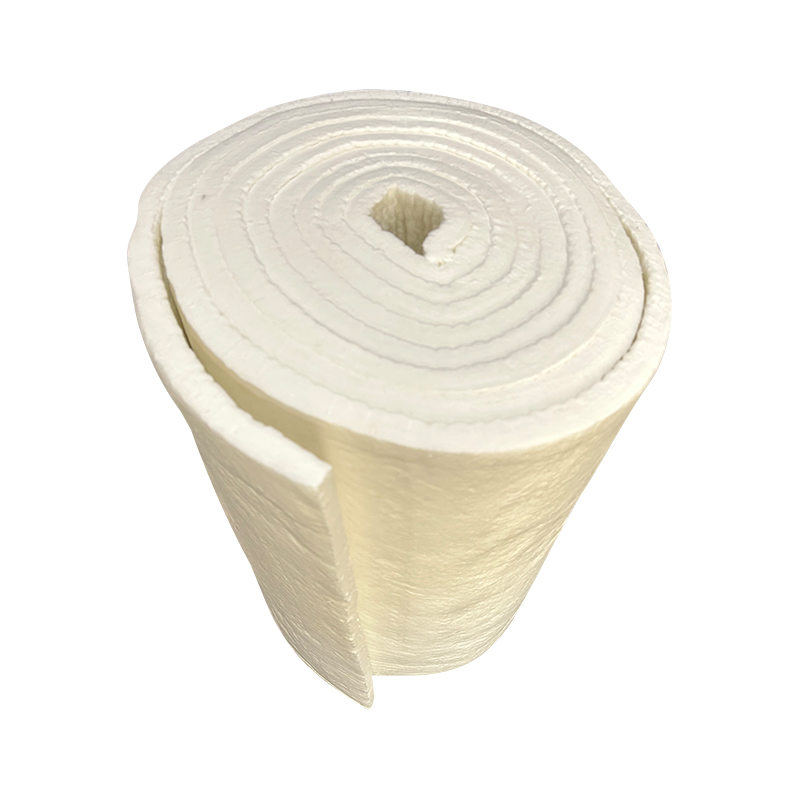

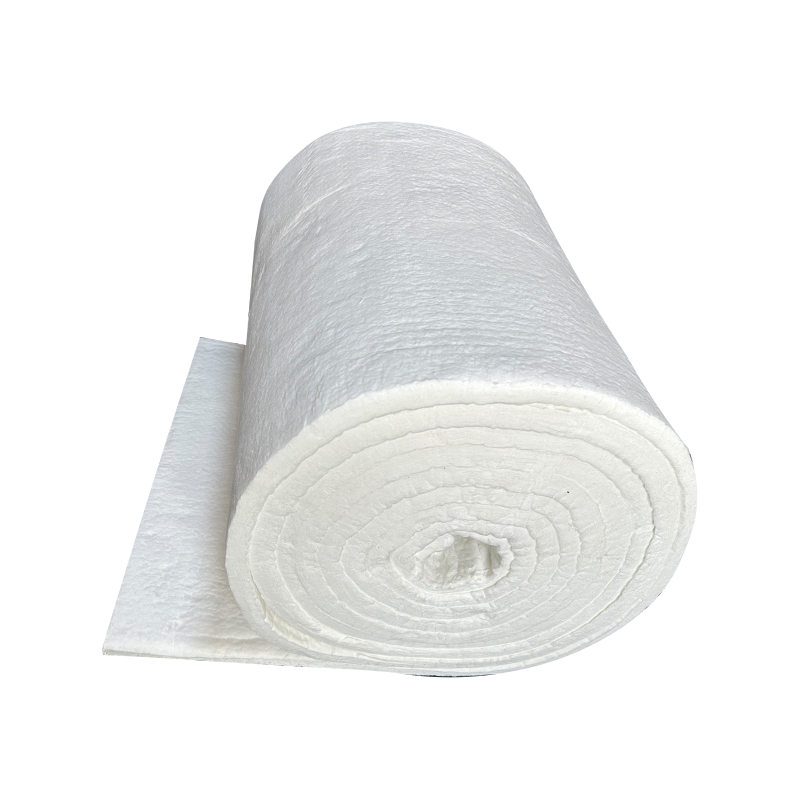

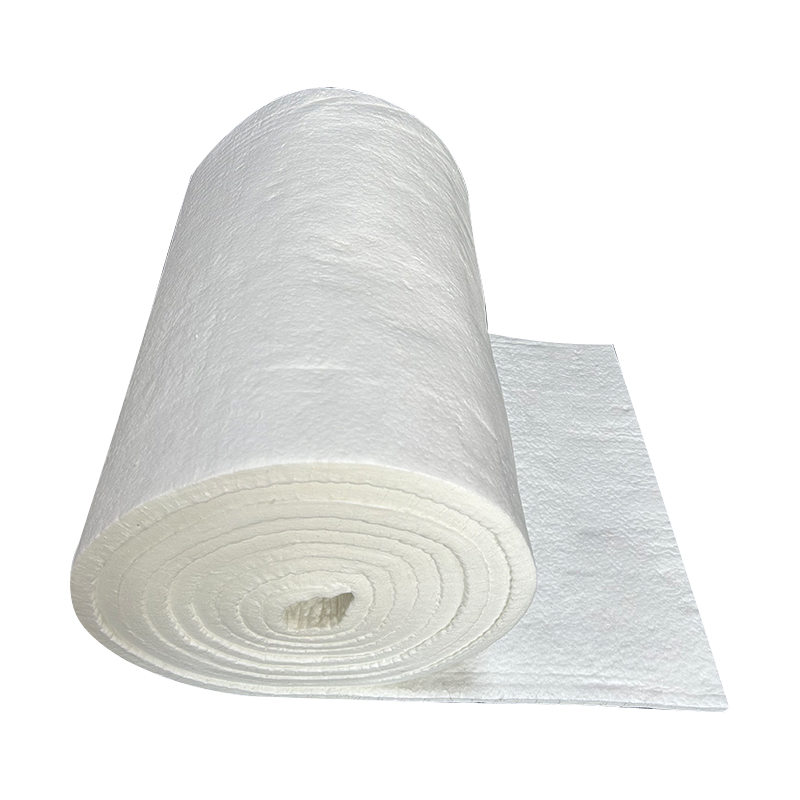

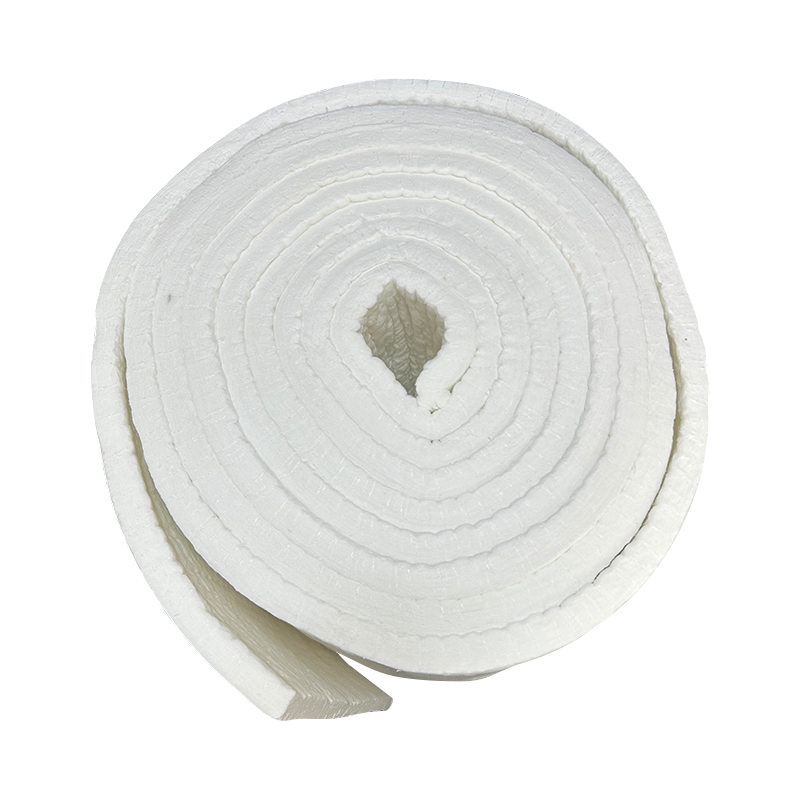

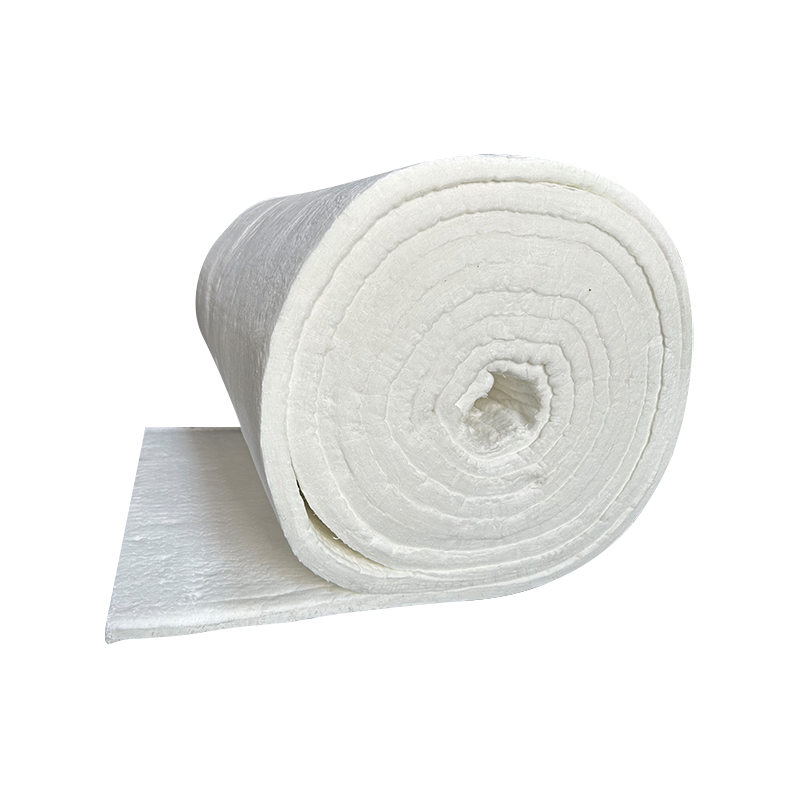

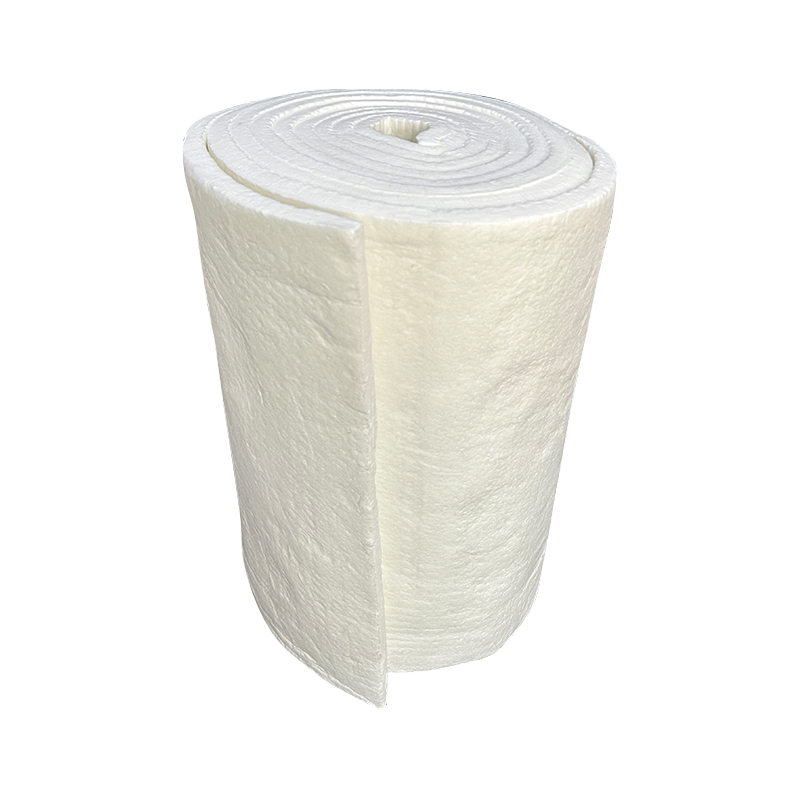

The NC ceramic fiber blanket is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber intertexture, and the performance of delamination resistance as well as tensile strength. The blanket does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to most erosion of the chemicals. The physical properties, like refractoriness and insulation, remain the same when meeting with oil, water, or steam.

Characteristics
Excellent chemical stability, nonflammable; Low thermal conductivity and good insulation; Good tensile strength and springiness; Excellent performance of soundproofing and resistance to heat-shock.

Application
Internal and external lining for industry furnace; Internal and external insulation for pipeline; Insulation for home application, nuclear power, and aerospace; Joint sealing and filling insulation; Expansion seals/pipe coverings.

Product Common Specifications
Thickness:6/8/10/12.5/20/25/30/40/50mm

Ceramic Fiber Modules

Alumina Ceramic Fiber Felt

Product Information

Model		NC1260	NC1350	NC1400	NC1430	NC1600
Classification temperatuer(℃)		1260	1350	1400	1430	1600
Working temperature(℃)		1050	1200	1250	1250	1600
Density(KG/m³)		96-160	96-160	96-160	96-160
Reheating linear change(%)(24H)		≤2(1000℃)	≤2(1100℃)	≤2.5(1150℃)	≤2.5(1250℃)	≤1(1500℃)
Tensile strength Kpa(128Kg/M³)		80	80	80	80	100
Thermal conductivity (W/m.k) 128Kg/M³	400℃	0.09	0.09	0.09	0.09
	800℃	0.23	0.23	0.23	0.23	0.17
	1000℃	0.3	0.3	0.3	0.3	0.24
	1200℃					0.33
Chemical composition (%)	Al₂O₃	45-49	52-55	54-57	35-37	72-75
	Al₂O₃+SiO₂	99	99	99	99	99
	ZrO₃				14-17
	Other	1	1	1	1	1

Note: The technical data determined by the testing standards used will, on average, fluctuate within a certain range; the data do not represent the product quality assurance data.

Zhejiang Nengcheng Crystal Fiber Co., Ltd.

Zhejiang Nengcheng Crystal Fiber Co., Ltd. was established in 2015. It is a professional enterprise that develops and produces ultra lightweight energy-saving high-temperature materials, and sells experimental electric furnaces, industrial electric furnaces, and non-standard customized electric furnaces. Professional Ceramic Fiber Blankets Manufacturers and Ceramic Fiber Blankets Factory. The company adheres to the principle of "survival through quality, development through reputation" and upholds the business philosophy of "practicality, integrity, and efficiency". We are committed to providing comprehensive and high-quality equipment solutions for customers in industries such as ceramics, metallurgy, electronics, glass, and chemical engineering. We also provide services such as powder roasting, ceramic sintering, and high-temperature experiments to universities, research institutes, and industrial and mining enterprises. At the same time, we are also striving to promote the strategic development of Nengcheng's lightweight, energy-saving, and environmentally friendly high-temperature alumina fiber in the field of new furnaces, and strive to become an internationally leading advanced high-temperature equipment industry service provider. Custom Ceramic Fiber Blankets.
