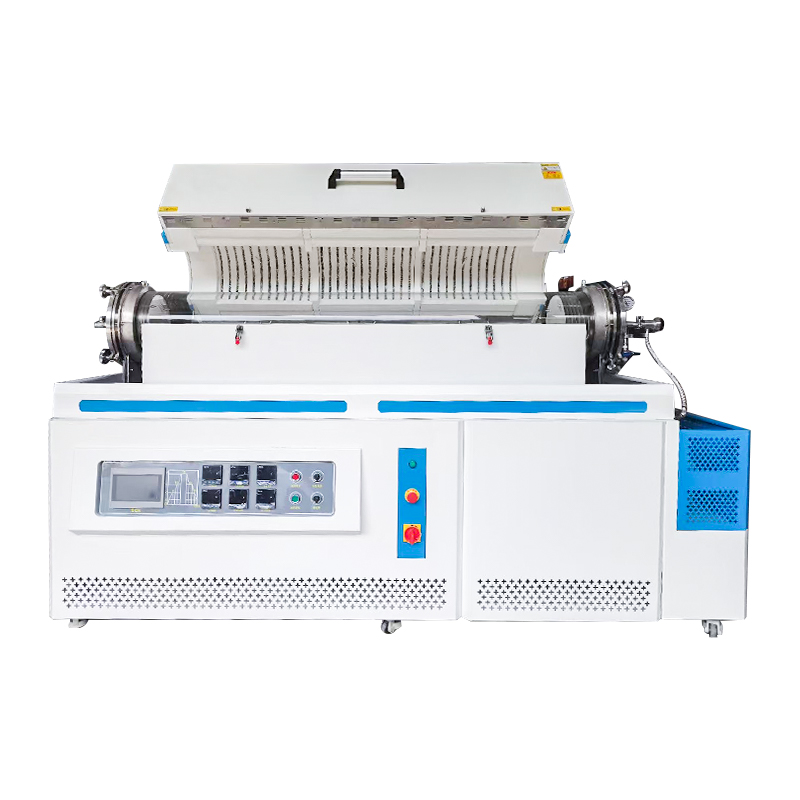

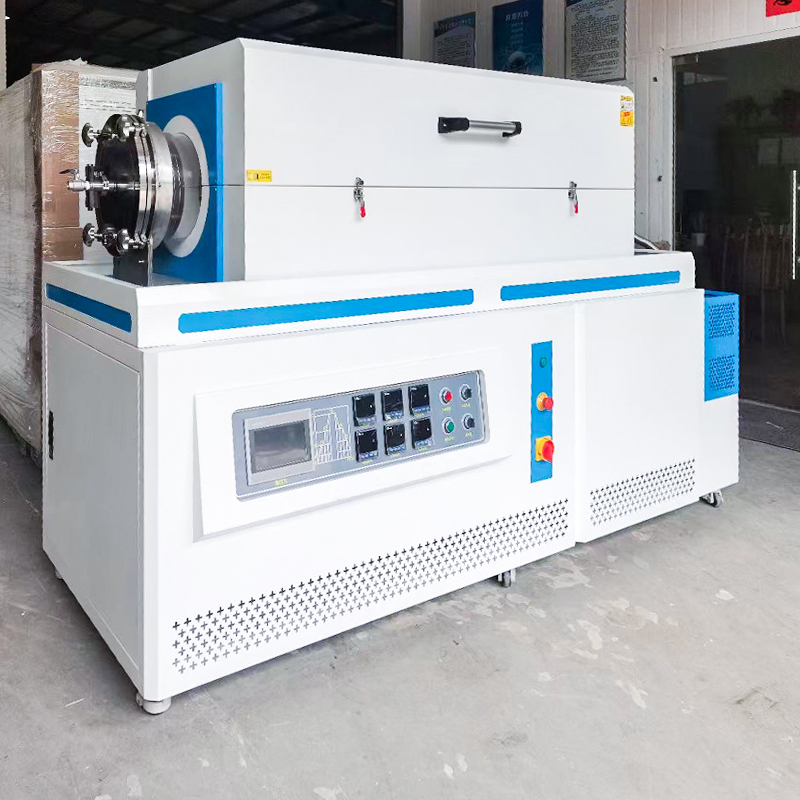

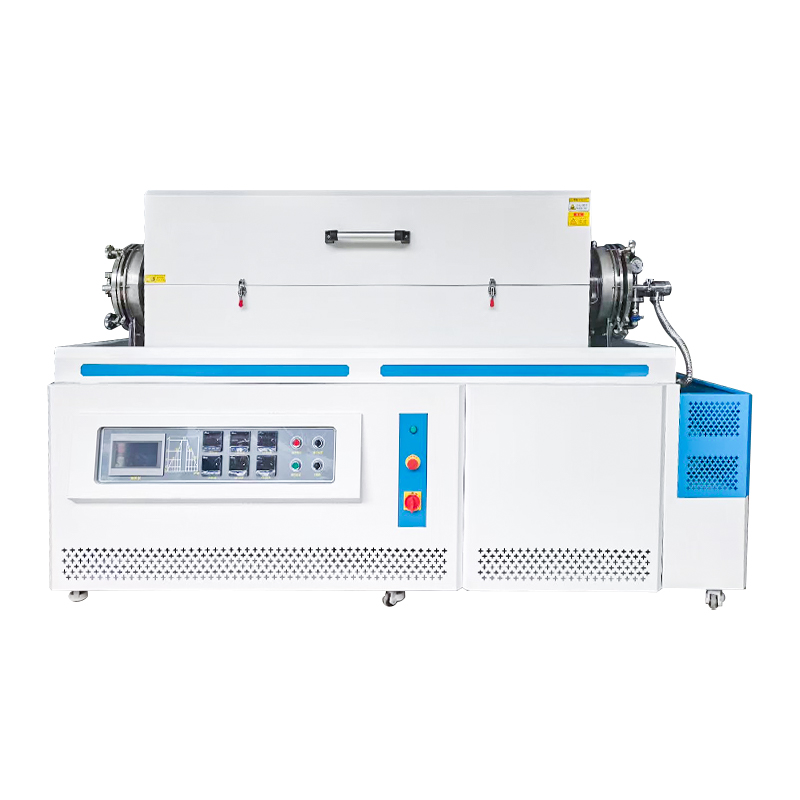

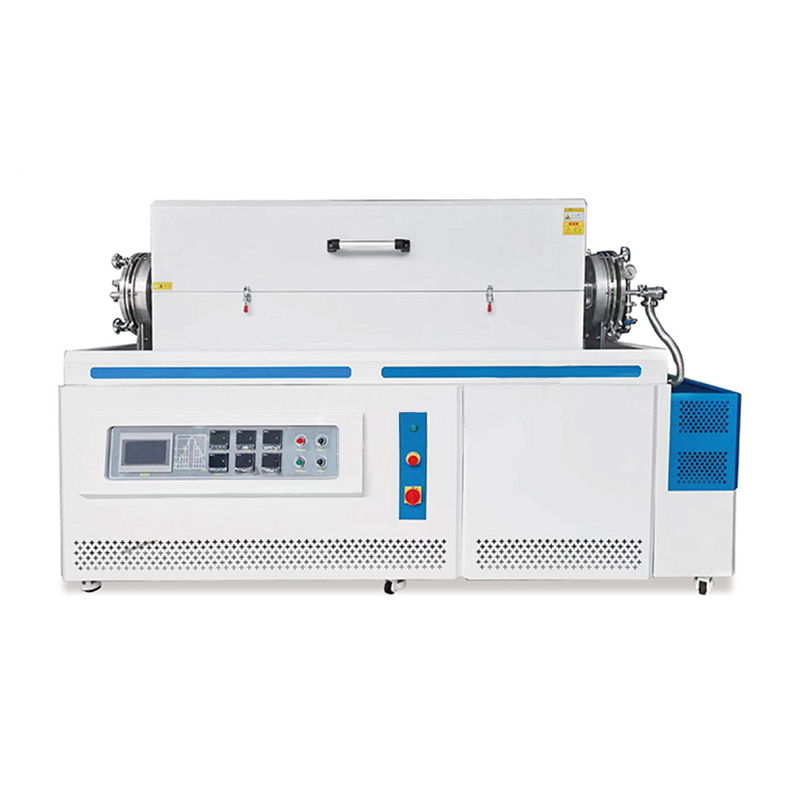

Large Caliber Tube Furnace
The large-diameter tube furnace uses resistance wire as the heating element, adopts a segment program temperature control system, phase shift trigger, thyristor control, and the furnace chamber insulation material uses alumina ceramic fiber material, which has good heat resistance, fast heating rate, high efficiency, and energy saving. The furnace tube uses a high-purity quartz tube, which has good thermal conductivity, strong resistance to thermal shock, good insulation and high-frequency characteristics at high temperature, and resistance to chemical erosion. It is widely used for laboratories, industrial and mining enterprises, scientific research units for element analysis and determination, annealing of general small steel parts, brazing, and heating of new materials such as electronic ceramics.
Furnace size (mm) | Maximum temperature (°C) | Power(KW) | Voltage | Heating elements | Vacuum degree |
φ200*3000 | 1200°C | 21 | 380V | Resistance wire | -0.1MPA、10PA、6.7*10-3PA(Optional) |
φ250*3000 | 27 | ||||
φ300*2400 | 36 | ||||
φ400*2400 | 55 |


-
1、 Shaped ceramic fiber furnace lining for high alumina ceramic fiber board The shaped ceramic fiber furnace lining of high alumina ceramic fiber board mainly refers to the furnace lining composed of formed refractory materials such as fiber blankets, fiber felt, fiber boards or fiber components. Structurally, it can be divided into two categories: layered structure and composite structure. 1. Structure of Layered Refractory Fiber Lining Layered laying of refractory fiber furnace lining is...
