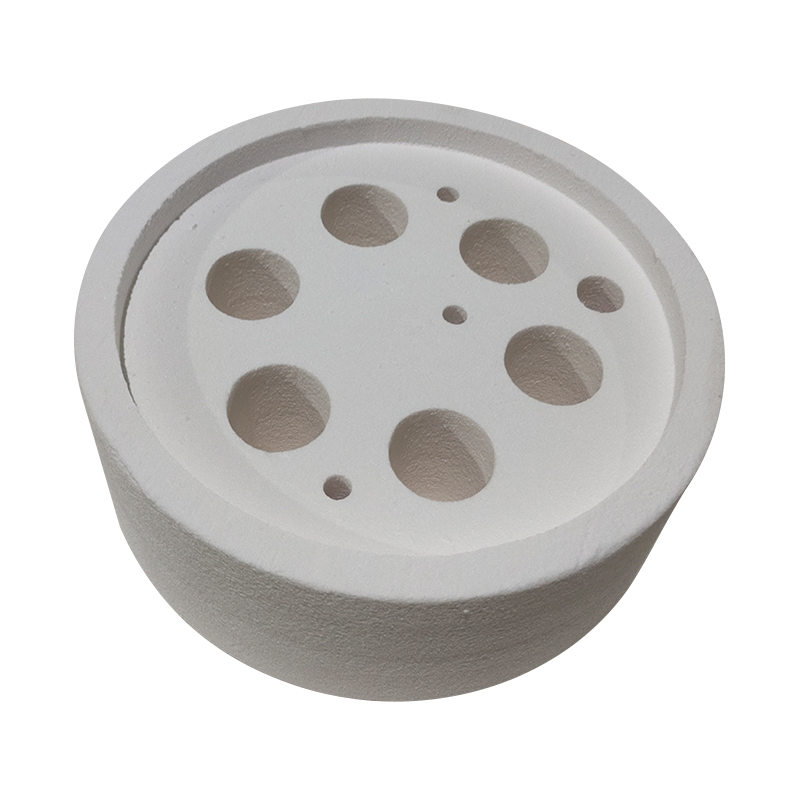

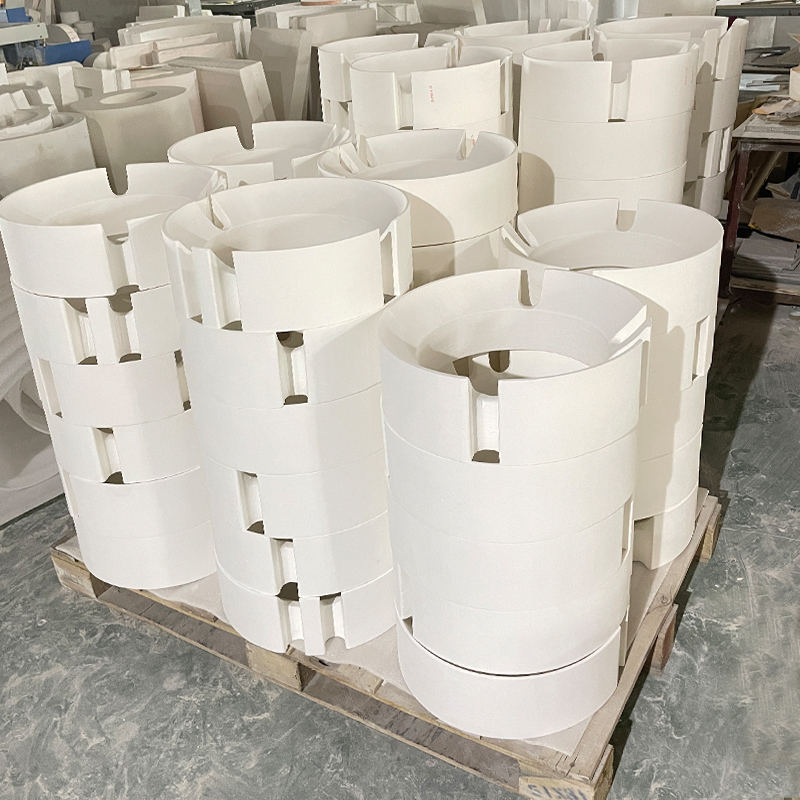

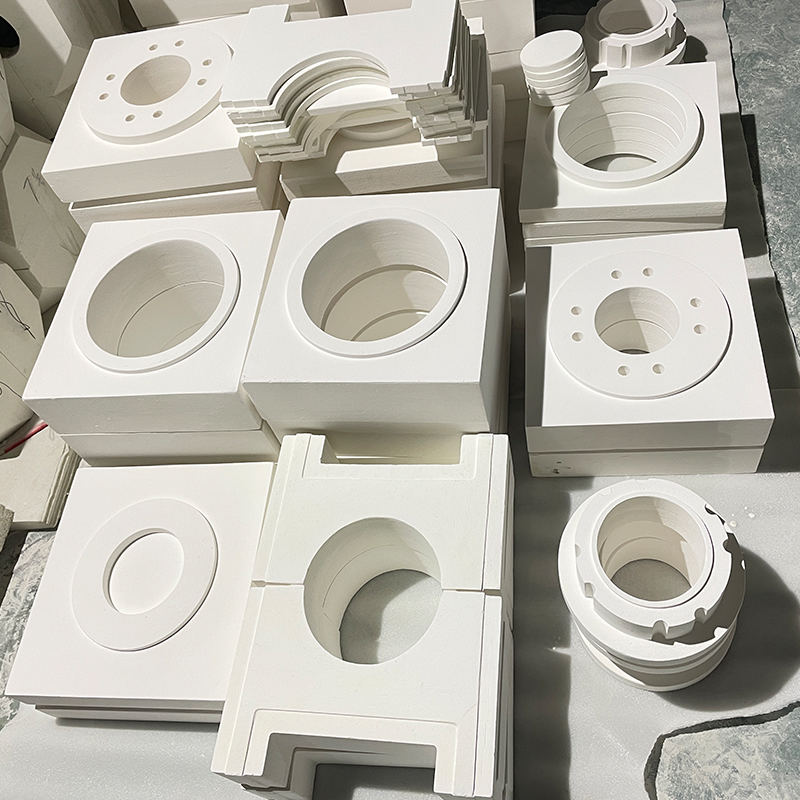

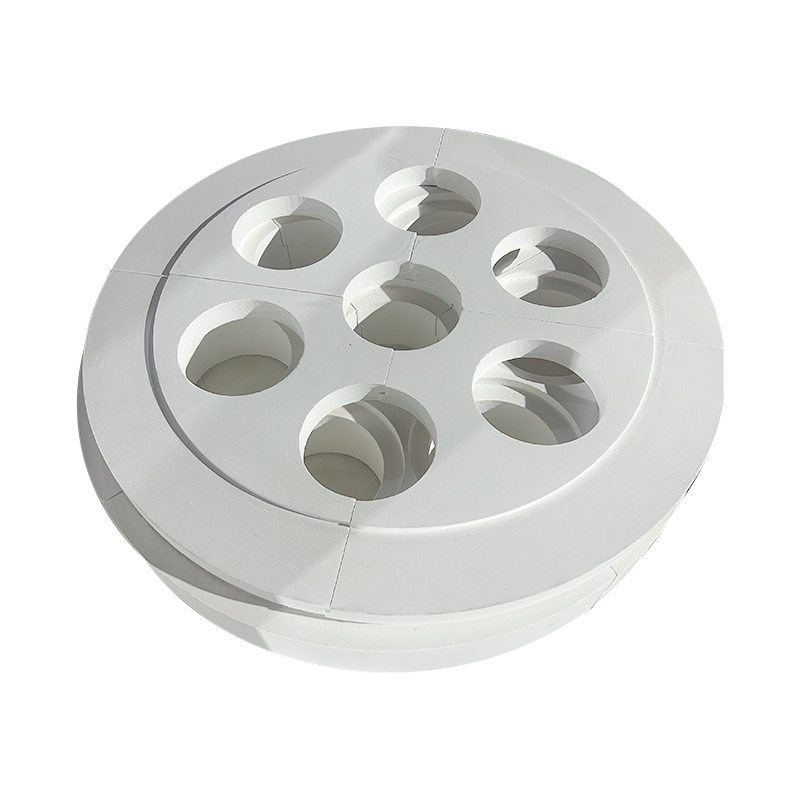

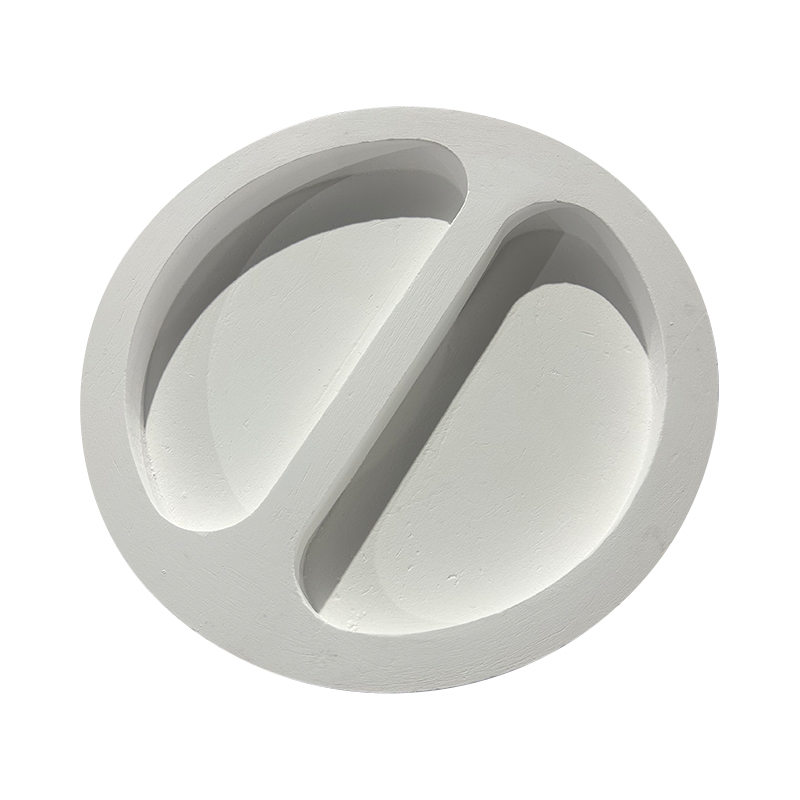

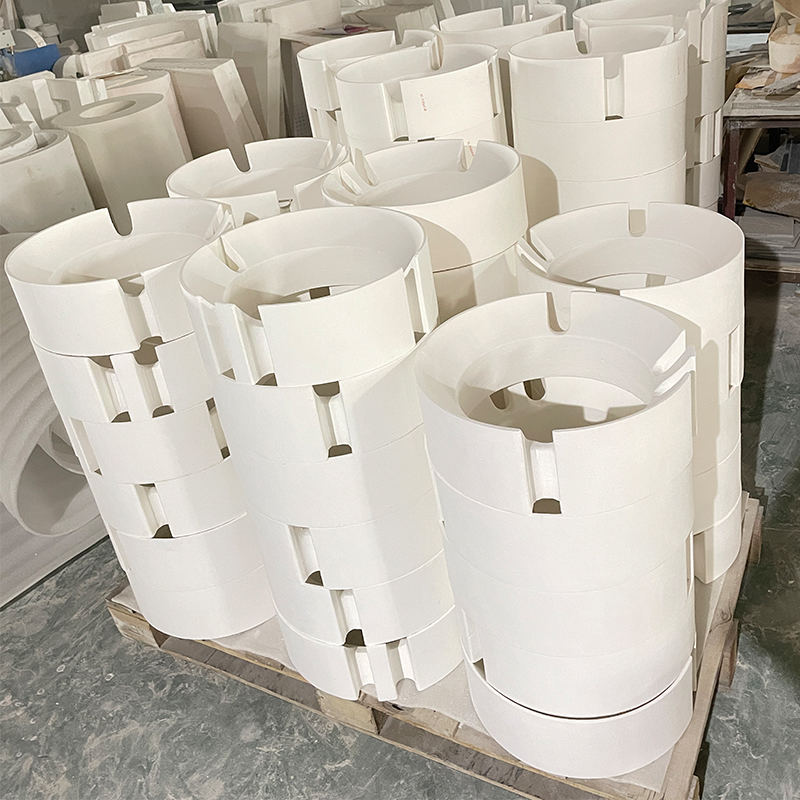

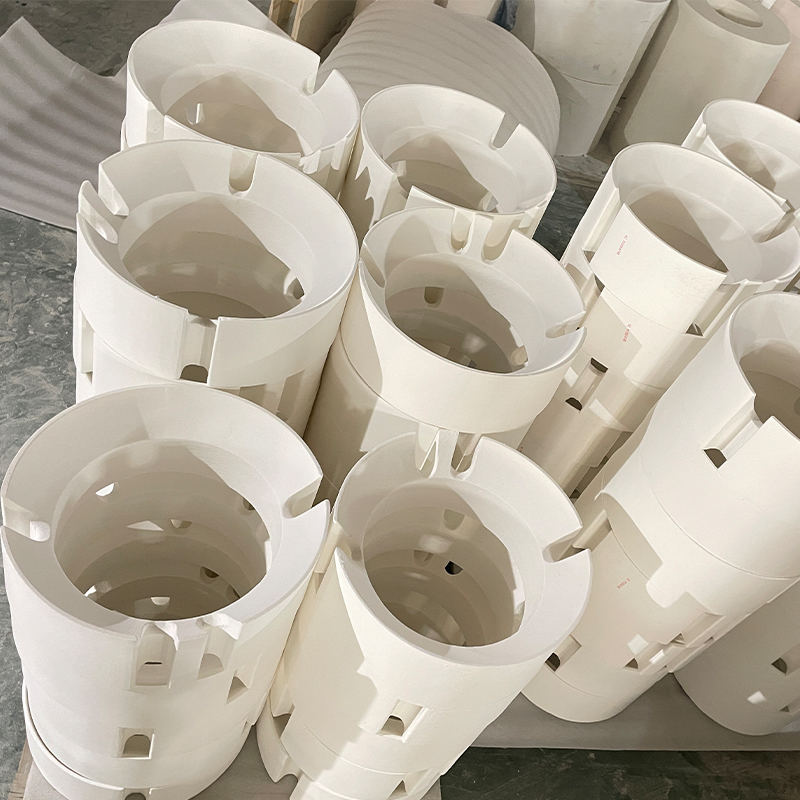

Ceramic Fiber Special Shaped Products(Customized according to drawings)

Introduction

NC fiber-shaped products (according to the design requirements provided by customers)are various fiber products with different densities, specifications, models, and performances. They are made from loose cotton through wet vacuum filtration molding, followed by drying and calcination. With excellent production equipment and stable raw materials, these products not only meet the complex thermal requirements of users but also resemble exquisite crafts

Characteristics

compressive strength, bending resistance, low thermal conductivity, thermal shock resistance, high dimensional accuracy, rapid heating and cooling response, resistance to air flow erosion as well as tolerance for sudden temperature changes.

Application

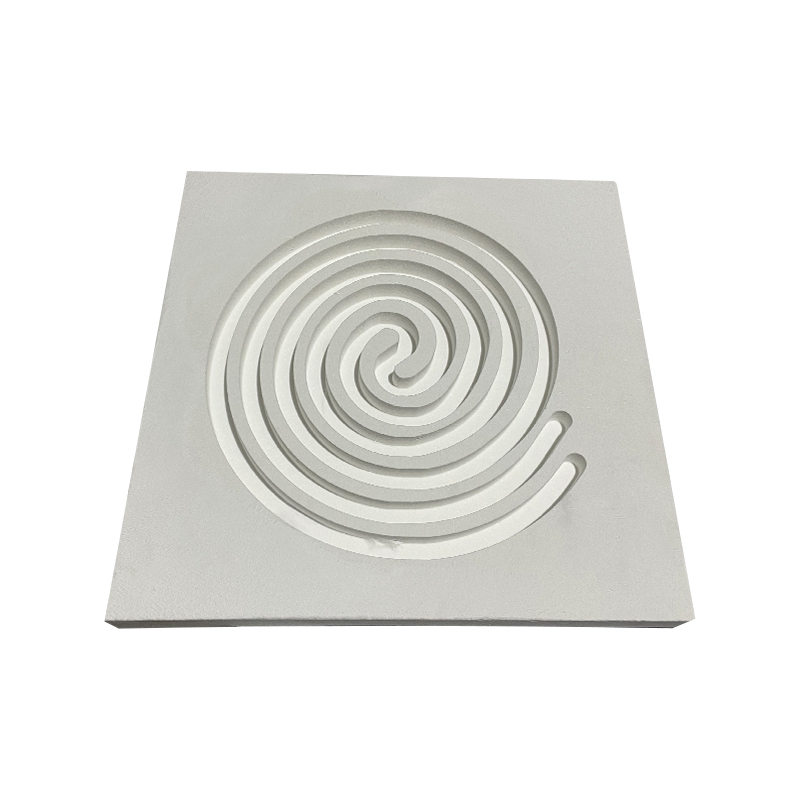

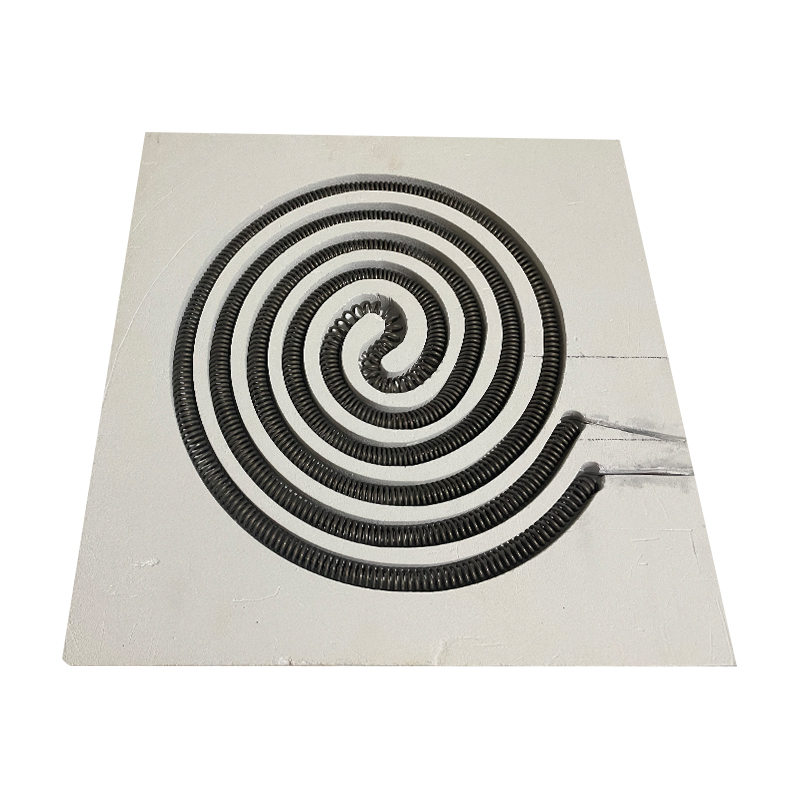

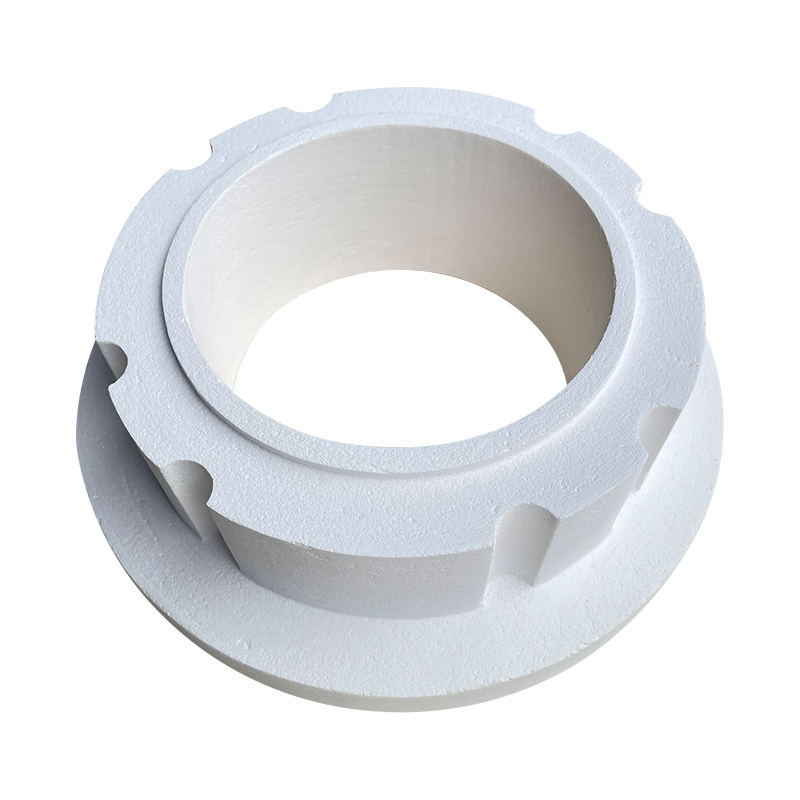

These products are used for special treatment on the hot surfaces of thermal equipment in various industries, such as burner bricks, observation holes, electric heating element supports; they can also be used for sprues and runners in casting processes or wall construction in furnaces. Additionally, they can replace high-end imported refractory materials.

Product Common Specifications

Customized according to the user's drawing or designed and produced by our company.

Alumina Ceramic Fiber Felt

Alumina Ceramic Fiber Board

Product Information

Product parameter

Model		NC1260	NC1350	NC1400	NC1430	NC1600	NC1700	NC1800
Classification Temperature(℃)		1260	1350	1400	1430	1600	1700	1800
Density(KG/M³)		300-600	300-600	300-600	300-600	300-600	450-700	450-700
Reheating Linear Change(%)(24H)		≤1.5(1050℃)	≤2.0(1100℃)	≤3.0(1200℃)	≤3.0(1250℃)	≤1.0(1450℃)	≤1.0(1500℃)	≤1.0(1600℃)
Flexural Strength(MPa)		≥0.5	≥0.5	≥0.5	≥0.5	≥0.7	≥0.7	≥0.7
Lol		≤5	≤5	≤5	≤5	≤6	≤6	≤6
Thermal Conductivity (W/m.k)	400℃	0.084	0.084	0.084	0.084
	800℃	0.128	0.125	0.125	0.125	0.16	0.16	0.16
	1000℃	0.176	0.174	0.174	0.2	0.21	0.21	0.21
Chemical composition (%)	Al₂O₃	45-49	52-55	54-57	44-48	72	78	83



	Al₂O₃+SiO₂	98	99	99	82	99	99	99
	zrO₃				15-17
	Other	2	1	1	1	1	1	1

Note: The technical data determined by the testing standards used will, on average, fluctuate within a certain range; the data do not represent the product quality assurance data.
